30 in Modern Floating Shelf with Hidden Steel Rod Mount

Tools

• Tape Measure
• Combination Square
• Pencil
• Drill
• Drill Press (Optional)
• Circular Saw or Miter Saw
• Table Saw or Circular Saw with Straightedge Guide
• Random Orbital Sander
• Trim Router
• Hand Plane
• Mallet
• Clamps
• Level
• Stud Finder

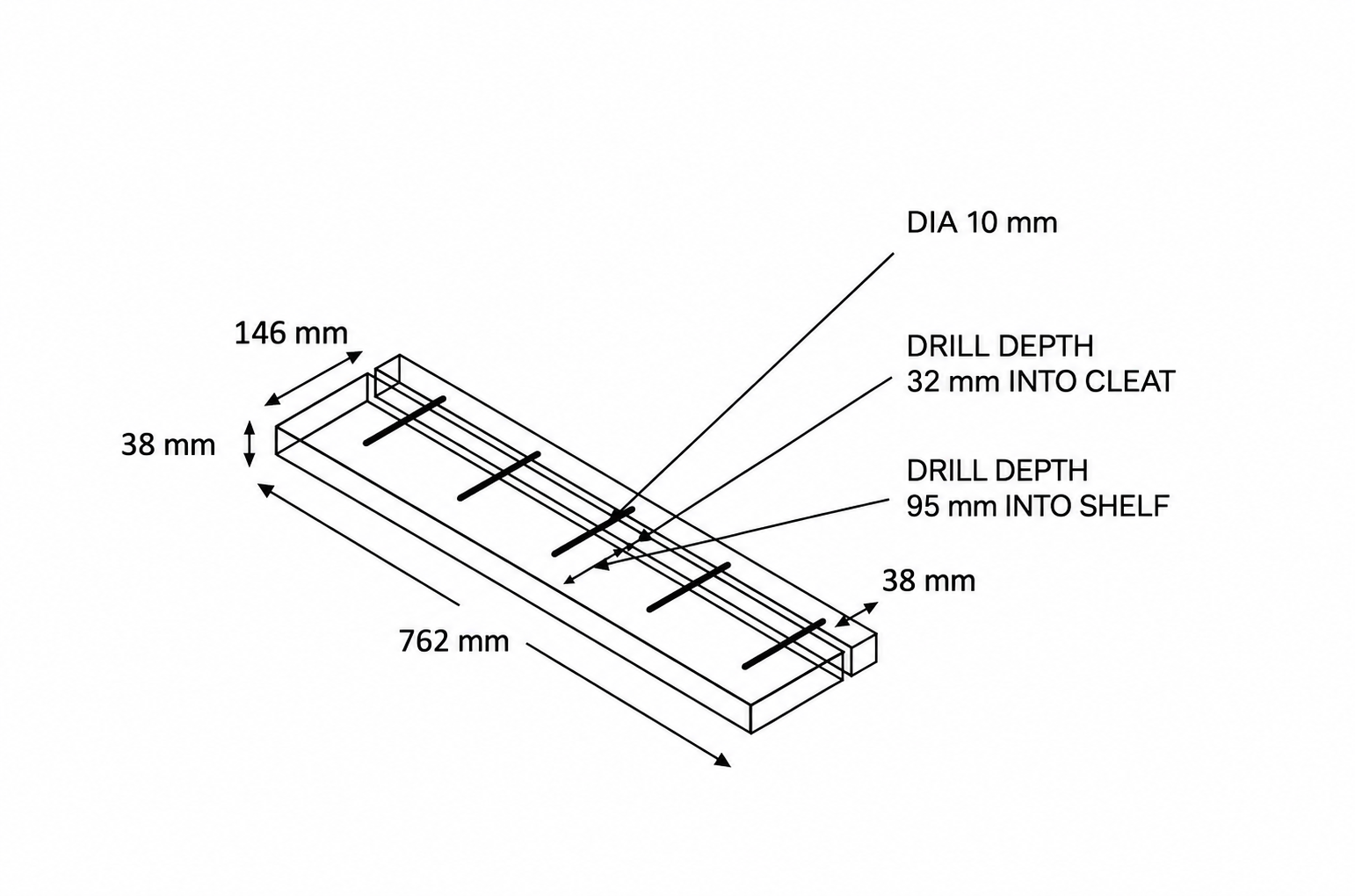

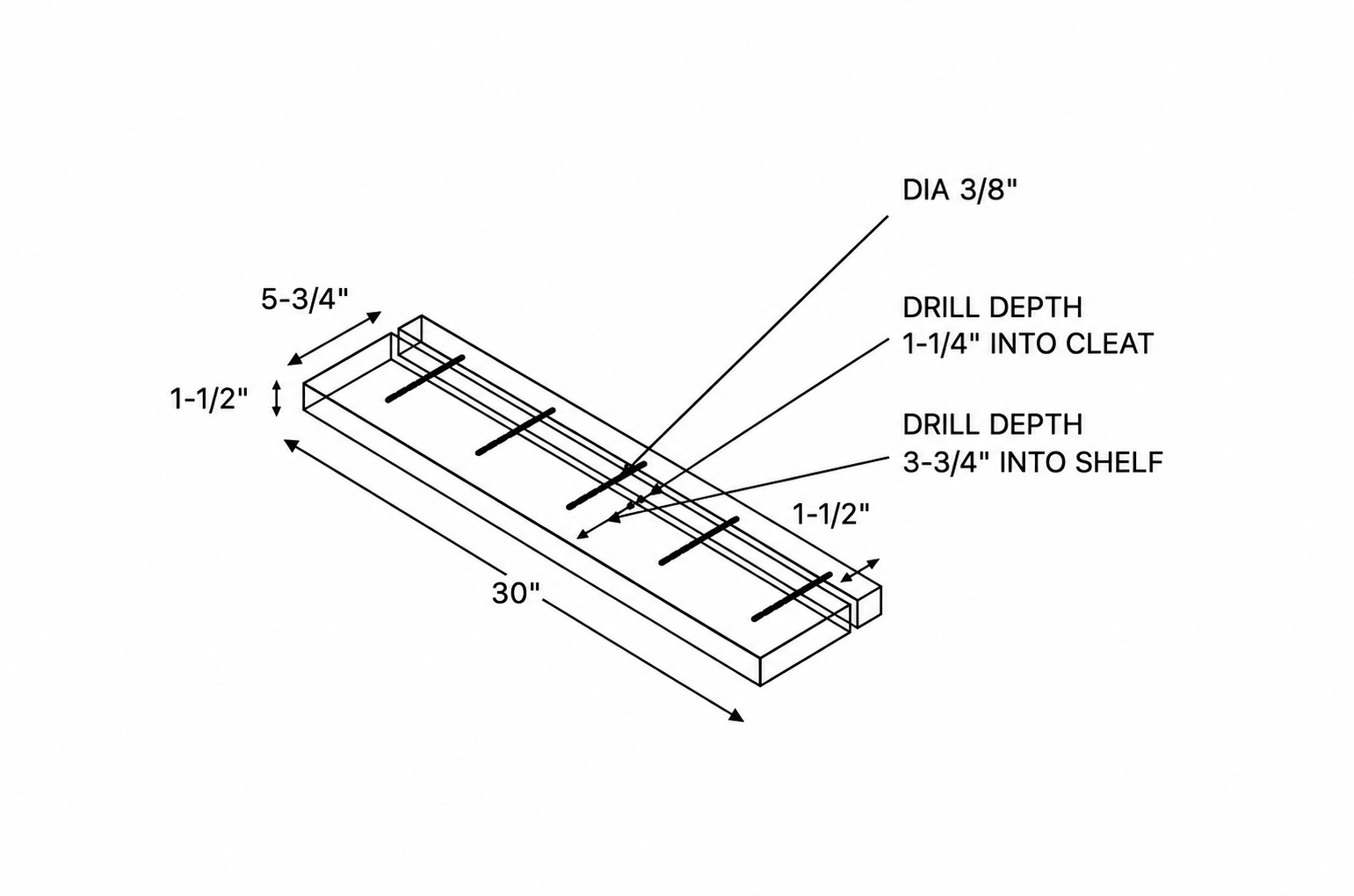

Cut list

• Shelf body – front section — 1 × 30 in x 5.75 in x 1.5 in Pine 2x8
• Wall cleat – rear strip — 1 × 30 in x 1.5 in x 1.5 in Pine 2x8
• Metal rods — 5 × 5 in long x 3/8 in diameter Steel or metal rod

Build steps

1. Prep: Inspect, Flatten, and Lay Out the Board

   1. Check the 2x8 for flatness, twist, and major defects before cutting. 2. Choose the straightest long edge to reference all layout from. 3. Mark the final shelf length at 30 in. 4. Mark a rip line 1.5 in in from the back edge along the full board length. 5. Choose the best-looking face for the top or front-visible face.

2. Cutting: Crosscut to Length and Rip the Cleat

   1. Crosscut the board to 30 in using a miter saw or circular saw. 2. Rip the 1.5 in rear strip using a table saw or circular saw with a straightedge guide. 3. Keep the wider piece as the shelf body and the narrow strip as the wall cleat. 4. Check both ripped edges for saw drift. 5. Clean up minor saw marks with a hand plane or sanding block if needed.

3. Layout: True the Parts and Mark Rod Locations

   1. Make sure the mating edges are straight and line up cleanly. 2. On the cleat face that points into the shelf body, mark five rod holes. 3. Place the rod locations at 3 in, 9 in, 15 in, 21 in, and 27 in from the left end. 4. Center each rod vertically at 3/4 in from the top and bottom faces. 5. Transfer the same center marks onto the back edge of the shelf body using the cleat as the reference. 6. Confirm all marks are square across both parts before drilling.

4. Joinery: Drill Rod Holes in the Wall Cleat

   1. Set up a drill or drill press with a 3/8 in bit. 2. Drill holes into the cleat at the five marked locations. 3. Keep each hole square to the cleat face. 4. Drill each hole about 1-1/4 in deep so the rods press into the cleat securely. 5. Use a depth stop or tape flag so all five holes match. 6. Clamp or firmly back up the narrow cleat while drilling so it cannot spin or lift.

5. Joinery: Drill Matching Blind Holes in the Shelf Body

   1. Support the shelf body securely before drilling into the back edge. 2. Drill five 3/8 in blind holes on the transferred center marks. 3. Keep each hole square to the back edge. 4. Drill each shelf body hole about 3-3/4 in deep to accept the exposed portion of each 5 in rod. 5. Clear chips often during deep drilling to keep the bit cool and straight. 6. Lightly break the hole edges with sandpaper to prevent tear-out during test fitting.

6. Assembly Prep: Install Rods in the Cleat and Test Fit

   1. Add a small amount of quick-set epoxy or wood glue inside each cleat hole. 2. Tap the five metal rods into the cleat holes until seated. 3. Keep the rods straight and parallel while the adhesive sets. 4. Slide the shelf body onto the rods for a dry fit. 5. Check for smooth entry without forcing. 6. Make sure the shelf body meets the cleat evenly across the full 30 in length.

7. Refinement: Shape Exposed Edges and Sand

   1. Remove the shelf body from the rods before routing or sanding. 2. Add a light chamfer or small roundover to the front long edge and front side edges with a trim router. 3. Leave the back mating edges crisp so the shelf closes tightly against the cleat. 4. Sand the shelf body and visible cleat surfaces through 120, 180, and 220 grit. 5. Ease any sharp corners by hand. 6. Remove mill stamps, planer marks, or tear-out before finishing.

8. Finishing: Apply Finish Before Final Installation

   1. Apply the chosen finish to the shelf body and any visible cleat area. 2. Keep excess finish out of the rod holes. 3. Allow the finish to cure fully before reinstalling the shelf. 4. Test the shelf fit after finish cures and lightly sand the hole edges if needed. 5. Keep the wall-facing cleat area clean so it sits flat against the wall.

9. Installation: Locate Studs and Mount the Cleat Level

   1. Mark stud centers on the wall within the 30 in shelf span. 2. Plan to fasten the cleat into at least two studs. 3. Hold the cleat in place with the rods facing outward and level it carefully. 4. Predrill the cleat for structural screws so the screws land near the stud centerline. 5. Drive 3 in structural screws through the cleat into the studs. 6. Recheck level after the first screw and again after final tightening. 7. Confirm there are no electrical or plumbing hazards before driving long screws.

10. Final Fit: Slide on the Shelf and Verify Alignment

    1. Start the shelf body onto all five rods evenly. 2. Keep the shelf square to the wall so one rod does not lead and bind. 3. Push the shelf back until it seats fully against the wall-mounted cleat. 4. Use a rubber mallet only if light pressure is needed. 5. Check that the top reads level. 6. Confirm the shelf does not rock, sag, or pull away from the cleat.

Safety notes

• Wear safety glasses, hearing protection, and appropriate respiratory protection when cutting, sanding, routing, or machining materials.
• Read the entire project plan and confirm all measurements, material sizes, and tool setups before beginning any cuts or assembly.
• Always follow manufacturer safety instructions and use proper safety equipment such as push sticks, guards, clamps, and stable work supports.
• Never operate tools while fatigued, distracted, or under the influence, and seek supervision or assistance when using unfamiliar tools or techniques.
• Maker Mind provides informational project guidance only; users are responsible for safe tool operation, verifying measurements, and maintaining a safe workshop environment.

Finishing suggestions

• For a natural modern look, apply water-based polyurethane in 2–3 thin coats.
• For a warmer tone, use a light stain followed by a clear topcoat.
• For easy maintenance, use wipe-on polyurethane and scuff-sand lightly between coats.
• Test stain or finish on an offcut first because construction pine can absorb finish unevenly.
